飞利浦SP550/SP551/RC550/RC551/SP560/SR560典雅大方...

2021-08-17| 室内照明娴忚閲忥細娆?/span>

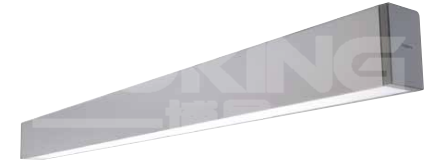

SlimBalance

SP550/SP551/RC550/RC551/SP560/SR560


SlimBalance是款高性价比的产品系列，时尚和优雅的设计，有助于创造充满吸引力和与众不同的空间。该产品系列涵盖不同的长度(500mm/600mm/1000mm/1200mm)和宽度(30mm/60mm/90mm)，以及提供各种安装方式，以适合不同的场景应用。SP560透光板可长达12m，之间没有任何间隙，进一步提高视觉舒适度及美观度。

产品特点

时尚设计

大方典雅的外形设计，模块化统一设计

舒适柔和

高显色指数CRI 80；SDCM 4，无可视频闪

长效可靠

系统效率达到100lm/W；寿命高达L70 50,000小时

灵活多变

多种长度和宽度以适合不同的办公应用，长度12m

的连续透光板安装，使办公室的视觉效果更好

高系统兼容性

支持Dali/Interact/Interact Pro/可调白光

技术参数

产品型号	SP/RC560	SP/RC550 600mm	SP/RC550 1200mm
系统流明输出宽宽 90	宽 30mm=1200lm (1200mm 长) 60mm=2500/4000lm (1200mm 长) mm = 2500/4000lm (1200mm 长)	1250lm/2000lm	2500lm/2800lm/4000lm/4500lm
系统功率		14W/18W	25W/26W/34W/36W
系统效率	>100lm/W	>90lm/W	>100lm/W
发光方式*		直接	直接/间接
眩光值	OC: UGR<19，NOC: UGR<22
电压	220-240V 50/60Hz
功率因数	0.9
色容差	SDCM≤4
显色指数	≥80
色温	4000K
材质	铝制外壳
寿命	L70 5万小时@Ta = 25°C
工作温度	-20°C < Ta < 40°C
长度	1200mm
安装方式	嵌入 / 悬吊
防护等级	独立式，连续式
类型	IP20
认证	CCC/CB

采购信息

项次	灯具型号	适配光源	12NC
1	SP550P LED25S 840 L120 PSU SD	LED	911401519241
2	SP551P LED40S 840 L120 PSU SD	LED	911401519341
3	SP550P LED12S 840 L60 PSU SD	LED	911401519441
4	SP551P LED20S 840 L60 PSU SD	LED	911401519541
5	SP550P LED28S 840 L120 PSU SI	LED	911401519841
6	SP551P LED45S 840 L120 PSU SI	LED	911401519941
7	RC551B LED40S 840 L120 PSU SD	LED	911401520141
8	RC551B LED20S 840 L60 PSU SD	LED	911401520241
9	SP550P LED25S 840 L120 PSD SD	LED	911401521141
10	SP551P LED40S 840 L120 PSD SD	LED	911401521241
11	SP550P LED12S 840 L60 PSD SD	LED	911401521341
12	SP551P LED20S 840 L60 PSD SD	LED	911401521441
15	SP550P LED28S 840 L120 PSD SI	LED	911401521741
16	SP551P LED45S 840 L120 PSD SI	LED	911401521841
13	RC551B LED40S 840 L120 PSD SD	LED	911401522041
14	RC551B LED20S 840 L60 PSD SD	LED	911401522141
15	SP550P LED28S 840 L120 PSU SI SQ	LED	911401528741
16	SP550P LED12S 840 L60 PSD SD SQ	LED	911401532041
17	SP550P LED12S 840 L60 PSU SD SQ	LED	911401528441
18	SP550P LED25S 840 L120 PSD SD SQ	LED	911401529241
19	SP550P LED25S 840 L120 PSU SD SQ	LED	911401528241
20	SP551P LED20S 840 L60 PSU SD SQ	LED	911401528341
21	SP551P LED45S 840 L120 PSU SI SQ	LED	911401529141
22	SP551P LED20S 840 L60 PSD SD SQ	LED	911401528941
23	SP551P LED40S 840 L120 PSU SD SQ	LED	911401528641
24	SP551P LED40S 840 L120 PSD SD SQ	LED	911401529041
25	SP551P LED45S 840 L120 PSD SI SQ	LED	911401529441
26	SP550P LED28S 840 L120 PSD SI SQ	LED	911401528841
27	SM550C LED12S 840 L60 PSD CD	LED	911401522541
28	SM550C LED25S 840 L120 PSD CD	LED	911401522441
29	RC550B LED12S 840 L60 PSD CD	LED	911401522341
30	RC550B LED25S 840 L120 PSD CD	LED	911401522241
31	SP550P LED12S 840 L60 PSD CD	LED	911401521641
32	SP550P LED25S 840 L120 PSD CD	LED	911401521541
33	SM550C LED12S 840 L60 PSU CD	LED	911401520641
34	SM550C LED25S 840 L120 PSU CD	LED	911401520541
35	RC550B LED12S 840 L60 PSU CD	LED	911401520441
36	RC550B LED25S 840 L120 PSU CD	LED	911401520341
37	SP550P LED12S 840 L60 PSU CD	LED	911401519741
38	SP550P LED25S 840 L120 PSU CD	LED	911401519641
39	SP550P LED28S 840 L120 PSD CI	LED	911401521941
40	SP550P LED28S 840 L120 PSU CI	LED	911401520041
41	AC550Z End cap PSD	PSD版端盖	911401520841
42	AC550Z End cap PSU	PSU版端盖	911401520741
43	RC550B LED12S 840 L60 PSD CD II	LED	911401559551
44	RC550B LED12S 840 L60 PSU CD II	LED	911401559651
45	RC550B LED20S 840 L60 PSU SD II	LED	911401559751
46	RC550B LED20S 865 L60 PSU SD II	LED	911401559951
47	RC550B LED25S 840 L120 PSD CD II	LED	911401560051
48	RC550B LED25S 840 L120 PSU CD II	LED	911401560151
49	RC550B LED40S 840 L120 PSD SD II	LED	911401560351
50	RC550B LED40S 840 L120 PSU CD II	LED	911401560651
51	RC550B LED40S 840 L120 PSU SD II	LED	911401560851
52	RC550B LED40S 865 L120 PSD SD II	LED	911401561051
53	RC550B LED40S 865 L120 PSU CD II	LED	911401561151
54	RC550B LED40S 865 L120 PSU SD II	LED	911401561251
55	RC551B LED20S 840 L60 PSD SD II	LED	911401561351
56	RC551B LED20S 840 L60 PSU SD II	LED	911401561451
57	RC551B LED40S 840 L120 PSD SD II	LED	911401561551
58	RC551B LED40S 840 L120 PSU SD II	LED	911401561751
59	AC550Z End cap II	翻边版端盖	911401561851

注: 1. PSU表示固定输出，PSD表示DALI调光

2. CD,CI表示连续版，SD,SI表示独立版

3. SD,CD表示单面发光，SI,CI表示上下发光

4. SQ表示方形端盖

5. II 表示带翻边嵌入版
