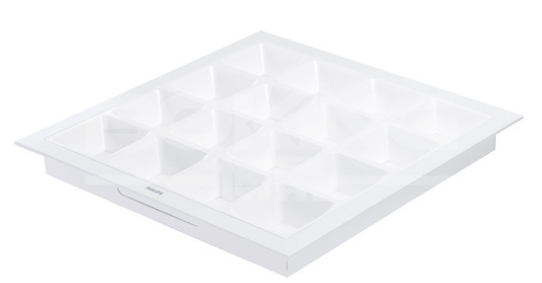

飞利浦RC650B高舒适型LED灯盘第二代

2021-08-17| 室内照明娴忚閲忥細娆?/span>

PowerBalance G4

RC650B

PowerBalance G4 RC650B灯盘采用专业光学设计，光色一致性优(SDCM≤3)，系统效率高达140lm/W，无可视频闪。出光纯净柔和，眩光指数低至UGR<16，满足办公环境需要。高显色指数CRI>90，还原自然色彩，营造护眼照明环境；配合2700K-6500K可调色温，响应WELL标准，呵护员工健康，缔造高级办公场所。还可搭载多种智能系统实现智能照明。

产品特点

高效节能

系统效率升级至140lm/W

纯净柔和

眩光指数低至UGR<16，出光柔和，适合高端办公使用光色一致性优 SDCM≤3

真彩表现

高显色指数CRI>90，造“真”色彩办公环境

色温可调

LOR可达80%，可配合T5光源与电子镇流器，比T8灯盘节能30%

智能互联

可搭载多种智能系统

长寿高效

寿命长达5万小时(L70)

技术参数

产品型号

RC650B LED40S CRI80

RC650B LED40S CRI90

系统输出

4100lm

4000lm

3000lm ETO

系统功率

29W

系统效率

140lm/W

135lm/W

眩光指数

色温

4000K/6500K

可调色温

2700K-6500K

显色指数

色容差

SDCM≤3

运行温度

-20°C~+35°C (Ta 25°C)

PoE/IAP ETO

驱动

PSU/PSD/IAO/IAP/PoE/TWH

IP等级

IP20

1200x600mm ETO

尺寸 (LxWxH)

597x597mm / 297x1197mm

安装方式

嵌入式

使用寿命

50,000 小时@L70 B50

认证

CB/EMC/CE/ANZ

采购信息

项次	灯具型号	适配光源	12NC
PowerBalance G4 RC650
1	RC650B LED40S865 PSU W60L60	LED	911401548461
2	RC650B LED40S865 PSD W60L60	LED	911401548561
3	RC650B LED40S840 PSU W60L60	LED	911401548661
4	RC650B LED40S840 PSD W60L60	LED	911401548761
5	RC650B LED40S865 PSU W30L120	LED	911401548861
6	RC650B LED40S865 PSD W30L120	LED	911401548961
7	RC650B LED40S840 PSU W30L120	LED	911401549061
8	RC650B LED40S840 PSD W30L120	LED	911401549161
15	RC650Z PCV ACC W60L60	PCV安装附件	911401549861
16	RC650Z PCV ACC W30L120	PCV安装附件	911401549961
17	RC650B LED40S865 IAO W60L60	LED	911401553961
18	RC650B LED40S840 IAO W60L60	LED	911401554261
19	RC650B LED40S865 IAO W30L120	LED	911401554861
20	RC650B LED40S840 IAO W30L120	LED	911401555361
23	RC650B LED40S940 PSU W30L120	LED	911401556661
24	RC650B LED40S940 PSD W30L120	LED	911401556761
25	RC650B LED40S940 IAO W30L120	LED	911401556961
26	RC650B LED40S940 PSU W60L60	LED	911401557261
27	RC650B LED40S940 PSD W60L60	LED	911401557361
28	RC650B LED40S940 IAO W60L60	LED	911401557561
37	RC650B LED40S965 PSU W60L60	LED	911401580061
38	RC650B LED40S965 PSD W60L60	LED	911401580161
39	RC650B LED40S965 IAO W60L60	LED	911401580261
40	RC650B LED40S965 PSU W30L120	LED	911401580361
41	RC650B LED40S965 PSD W30L120	LED	911401580461
42	RC650B LED40S965 IAO W30L120	LED	911401580561

注：1.PSU表示固定输出, PSD表示DALI调光, IAP表示InterAct Pro, IAO表示InterAct Office

2.8XX表示CRI>80版本，9XX表示CRI>90版本
